Auger > Drills > Industrial
Auger Bits – Short Series
D510Sutton Tools Auger Bits are designed for fast cutting through holes in timber such as fence posts and railway sleepers. Suitable for kiln dried timber hardwood, softwood, MDF and particle boards. Not suitable for green sap woods.

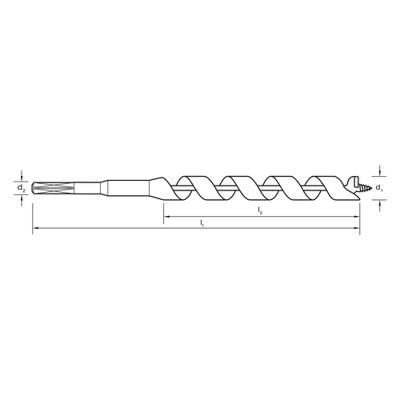

Item #
Diameter d1 (mm)
Length l1 (mm)
Length l2 (mm)
Shank
Info

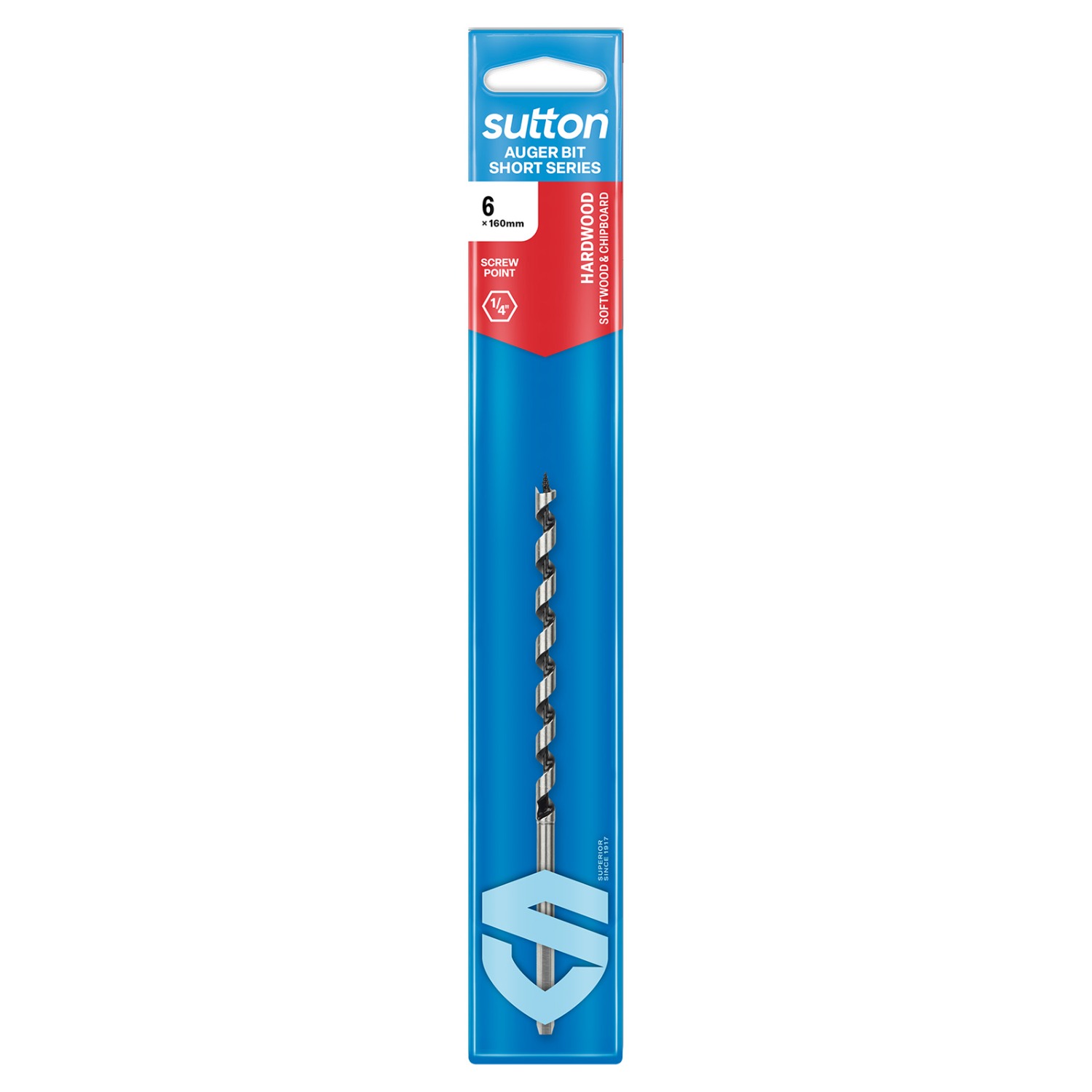

D5100600
6.00
160
100
1/4
- Pack Qty: 1
- Barcode: 9311963371504
- Order Multiple: 1
D5100600
D5100800
8.00
170
100
1/4
- Pack Qty: 1
- Barcode: 9311963371511
- Order Multiple: 1
D5100800
D5101000
10.00
190
120
1/4
- Pack Qty: 1
- Barcode: 9311963371528
- Order Multiple: 1
D5101000
D5101200
12.00
190
120
1/4
- Pack Qty: 1
- Barcode: 9311963371535
- Order Multiple: 1
D5101200
D5101300
13.00
190
120
7/16
- Pack Qty: 1
- Barcode: 9311963371542
- Order Multiple: 1
D5101300
D5101400
14.00
200
130
7/16
- Pack Qty: 1
- Barcode: 9311963371559
- Order Multiple: 1
D5101400
D5101600
16.00
200
130
7/16
- Pack Qty: 1
- Barcode: 9311963371566
- Order Multiple: 1
D5101600
D5101800
18.00
200
130
7/16
- Pack Qty: 1
- Barcode: 9311963371573
- Order Multiple: 1
D5101800
D5102000
20.00
210
140
7/16
- Pack Qty: 1
- Barcode: 9311963371580
- Order Multiple: 1
D5102000
D5102200
22.00
210
140
7/16
- Pack Qty: 1
- Barcode: 9311963371597
- Order Multiple: 1
D5102200

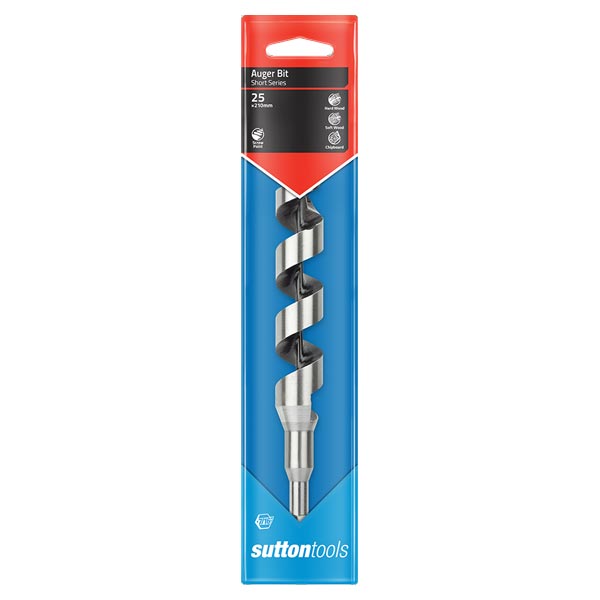

D5102500
25.00
210
140
7/16
- Pack Qty: 1
- Barcode: 9311963371603
- Order Multiple: 1
D5102500
- Single-Spur cutting edge scribes the circumference of the hole for a smoother finish
- Coarse screw point draws the bit into the work piece providing fast drilling in hard and soft woods
- Solid core design with wide lands provide extra rigidity while drilling
- Hex shank for positive grip, preventing slippage in chuck
- Made from alloy steel
Wood | Metal | Specialty | Masonry | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
KEY
Material
Alloy Steel
Finish
Brt
Shank Form
Hex
Point Form
Screw
No of Cutting Edges
ul
